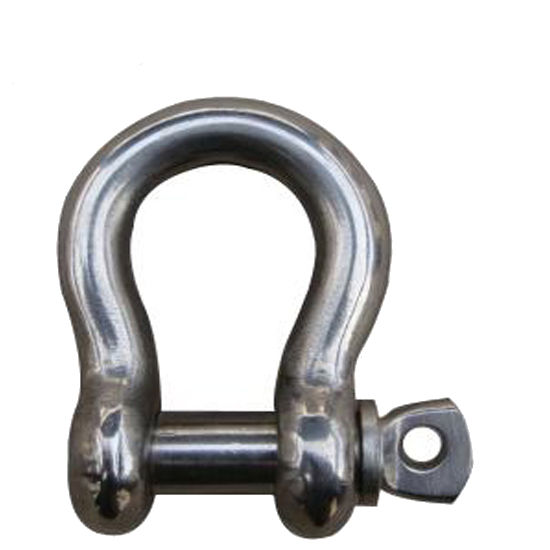

Stainless Steel Bow Shackle US Type Grade 316
1/4" - 5/16" - 3/8" - 1/2" - 5/8" - 3/4" - 7/8" - 1" - 1 1/4"

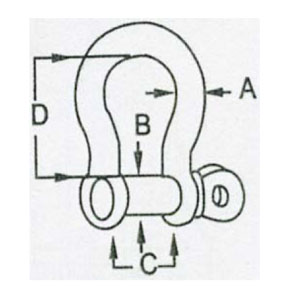

| Size | A | B | C | D | WLL | Weight |
| 1/4" | 1/4" | 5/16" | 0.47" | 1.13" | 500 kg (1,100 lb) | 0.038 kg |
| 5/16" | 5/16" | 3/8" | 0.53" | 1.22" | 750 kg (1,650 lb) | 0.077 kg |
| 3/8" | 3/8" | 7/16" | 0.66" | 1.44" | 1,000 kg (2,200 lb) |
0.138 kg |
| 1/2" | 1/2" | 5/8" | 0.81" | 1.88" | 2,000 kg (4,400 lb) | 0.251 kg |
| 5/8" | 5/8" | 3/4" | 1.25" | 2.81" | 3,000 kg (6,600 lb) | 0.552 kg |
| 3/4" | 3/4" | 7/8" | 1.44" | 3.31" | 4,000 kg (8,800 lb) | 1.020 kg |
| 7/8" | 7/8" | 1" | 1.69" | 1.50" | 5,000 kg (11,000 lb) | 1.600 kg |
| 1" | 1" | 1 1/8" | 1.81" | 4.25" | 6,000 kg (13,200 lb) | 2.400 kg |
| 1 1/4" | 1 1/4" | 1 3/8" | 2.03" | 4.69" | 8,000 kg (17,600 lb) | 4.050 kg |
1 Review
-
3/16 Stainless Bow Shackle
Nothing wrong with it just did not fit the anchor I have. Shipping was extremely fast! 1 day
